Automatic Metal Coil Slitter Machine Line for Steel Cutting 6mm

Place of Origin : Jiangsu, China

Brand Name : HRF

Price : $50,000.00/sets 1-1 sets

Cutting Width (mm) : 500 - 1800 mm

Material Thickness(mm) : 2 - 6 mm

Video outgoing-inspection : Not Available

Machinery Test Report : Not Available

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear

Cutting Speed(m/min) : 1 - 100 mm

No. of Slitting Lines : 1 - 39

Coil Weight (T) : 25 T

Condition : New, new

Voltage : 380V

Rated Power : 150KW

Dimension(L*W*H) : 28X8X2M

Weight : 5000

Year : 2020

Key Selling Points : High Productivity

Warranty : 1 Year

Applicable Industries : Construction works , Building Material Shops, Machinery Repair Shops

Showroom Location : Pakistan, India, Argentina, Colombia, Romania, Kazakhstan, Uzbekistan, Tajikistan

After-sales Service Provided : Engineers available to service machinery overseas

Product name : Automatic Roll Coiling Slitting Machine For Sale

thickness : 2-6mm

Purpose : Slitting coils

MQQ : 1 set

Supply Capacity : 3 sets per year

Inner diameter of coils : ≥508mm(508, 610, 760)

Outer diameter of coils : 2100mm

name : slitting machine for steel coil coil slitting machine

Contact Now

product description

The slitting machine is also called vertical slitting line which are used to slit cold rolled steel coil,hot rolled steel coil,galvanized steel coil,silicone steel coil,stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well The smaller metal strips are recoiled at the end of the slitting machine by which these smaller strips are used necessarily for the next process usage in the professional field of making transformers,motors making industry,tube/pipe welding mill industry,Cold roll forming industry, ceiling drywall industry and other high-precison equipment making and metal strips making industries. According to the material slitting thickness there are thin plate or board slitting machine,media-thickness plate or board slitting machine and thick plate or board slitting machine. According to the metal materials there are copper strips slitting machine,stainless steel slitting machine,cold or hot rolled plate slitting machine,silicone steel slitting machine.

Item	material thickness/mm	Material width	speed/mpm
1	0.2-2	400-2000	0-50-80-100-150
2	0.3-3	400-2000	0-50-80-100-120
3	0.4-4	500-2500	0-50-80-100-120
4	0.5-5	500-2500	0-50-80-100-120
5	1.0-6	500-2500	0-50-80-100
6	2.0-8	500-2500	0-30-50
7	3.0-10	800-2500	0-30-50
8	4.0-12	800-2500	0-30-50
9	8-16	800-2500	0-30-50
10	6.0-20	800-2500	0-30

The whole lineflowchart Coil loading car----Decoiler----loop pit 1-center aligner-----slitting machine--waste scrap winder- loop pit 2--pre-separator--tensioner---pressing separator--recoiler--manual packing-Unloading coil car

Automatic Metal Coil Slitter Machine Line for Steel Cutting 6mm

Product Name	2--6mmx1800 Slitting Machine
Condition	new
Size	25m6m2m
Color	customized
Purpose	Slitting coils
Package	Standard packing
MQQ	1 set
Delivery	80-100 days
Shipment	Shanghai port
Payment Mode	T/T, L/C
Payment Condition	30% deposit in advance. Balance paid by TT before shipping.
Supply Capacity	3 sets per year

Basic specification of the steel coil

Material of coils	High Strength Low Alloy steel ,78ksi(G550Mpa)
coil thickness	2~6mm
coil width	500~2100mm
Inner diameter of coils	≥508mm(508, 610, 760)
Outer diameter of coils	2100mm
Max. coil weight	25000Kgs

Technical specifications of the complete slitting machine

1. Thickness of the coils: 2—6mm; 2. Width of the slitting coils:500-1800mm 3. Precision of slitting width tolerance: ±0.03mm 4. Slitting speed: 0—80m/min(adjustable) 5. Coil Inner.Diameter: 460mm-610mm-760mm 6. Coil Outer.Diameter: max 2100mm 7. Slitting motor power:132kw DC motor 8. Recoiler motor power:160kw DC motor 9. Min slitting width : ≥30mm 10. Slitting blade quantity: 22 pcs

certified product

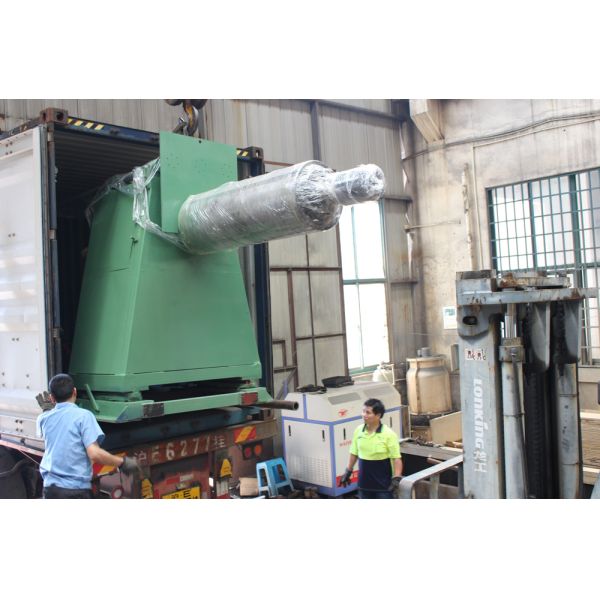

product Packing
